PRODUCT DIMENSION
| Item | Temper | Thickness(mm) | Width(mm) | Length(mm) | Weight(mt) | Inner Dia. (mm) | ||||||||||||
| Coil | T1-T5 DR7-DR9 | 0.115-0.5 | 600-1050 | --- | 3-8 | 508 | ||||||||||||

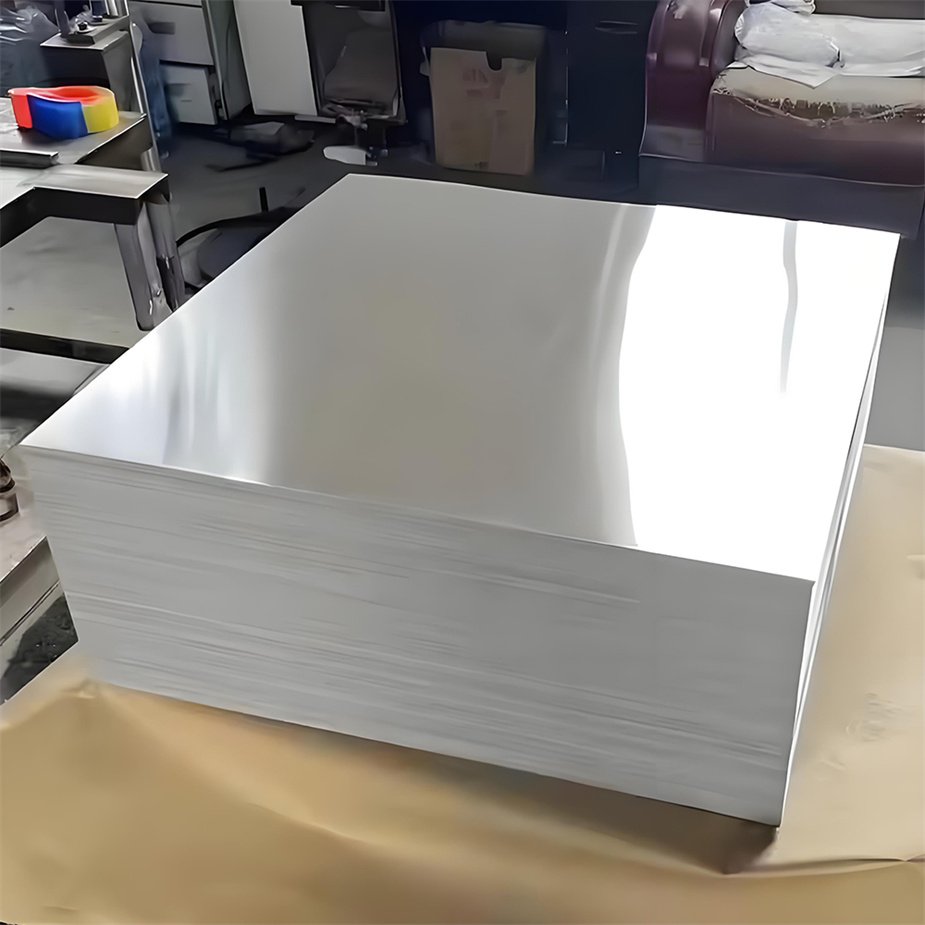

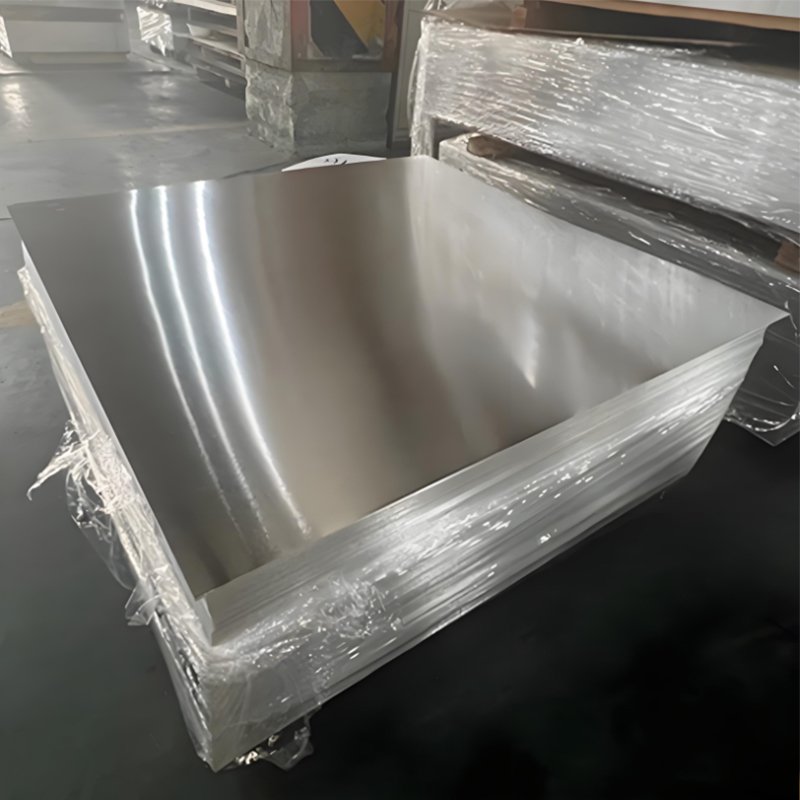

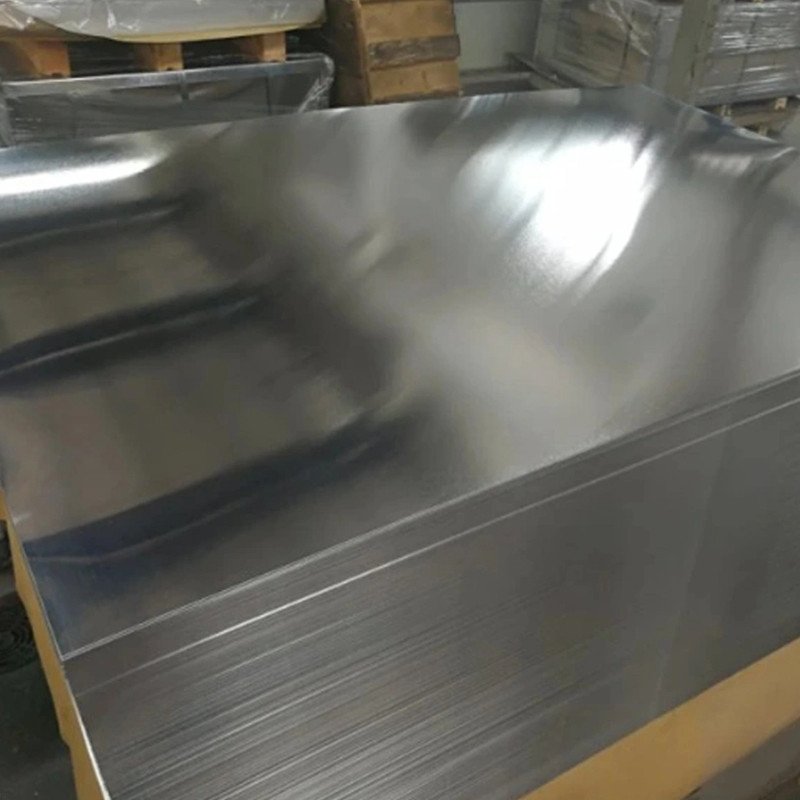

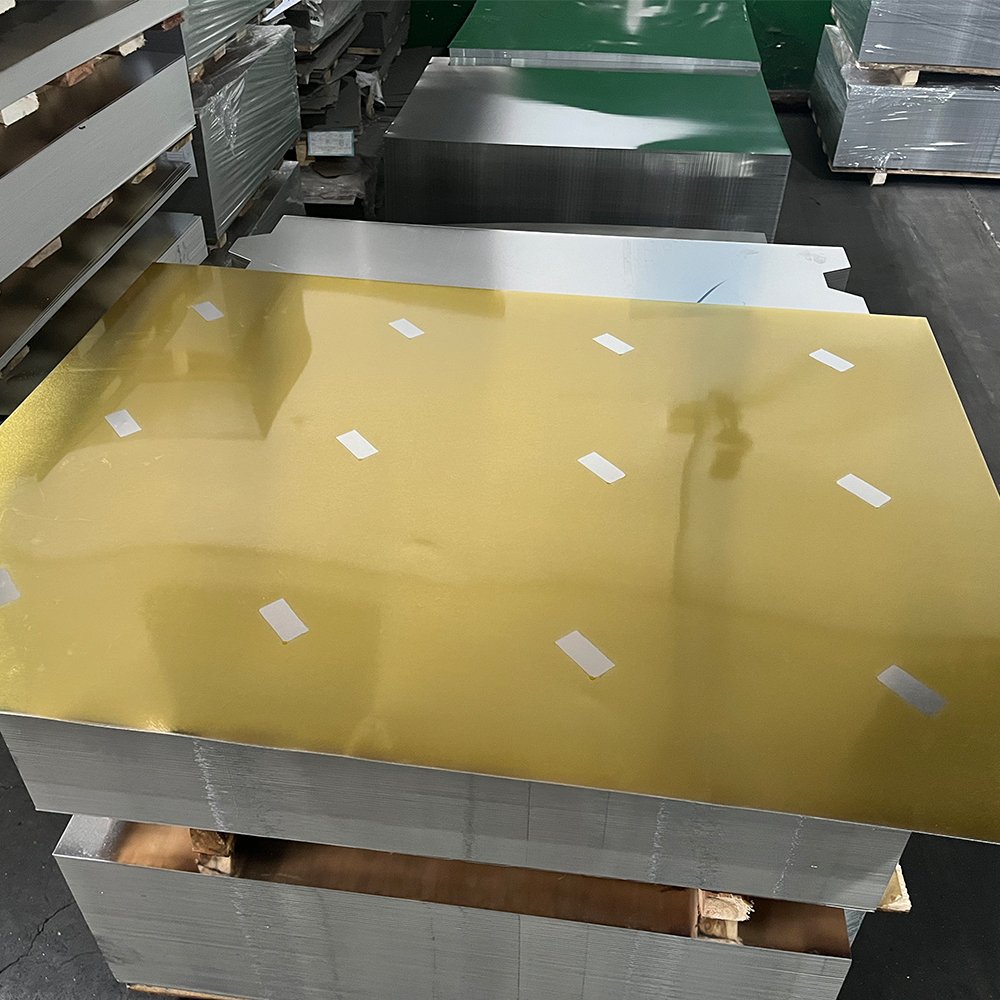

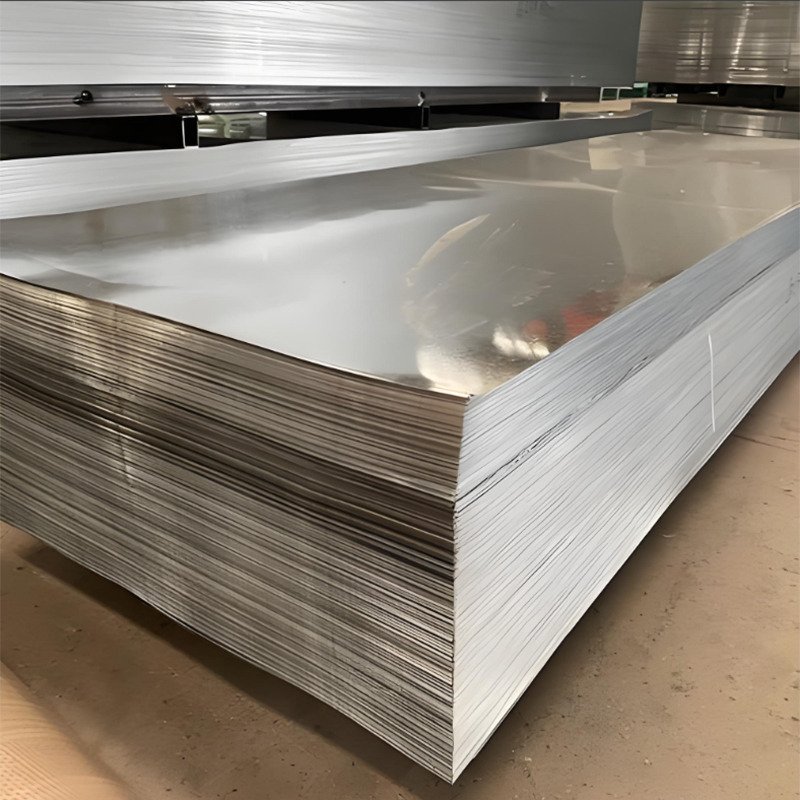

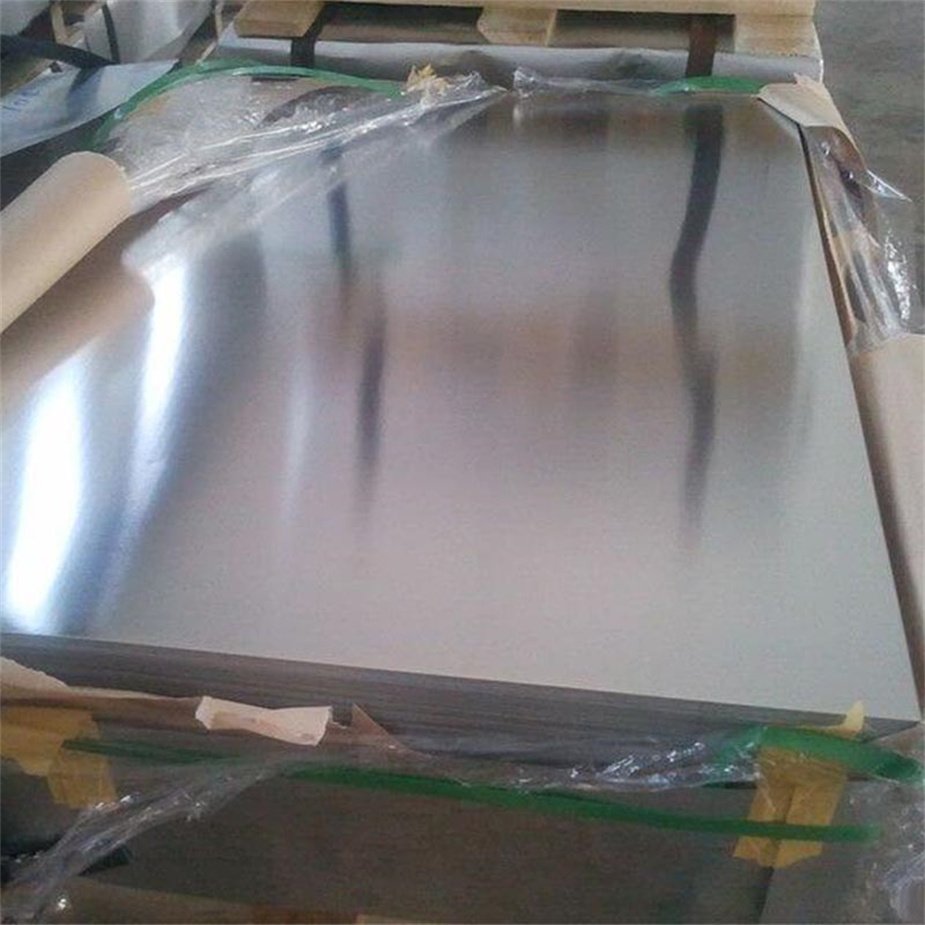

| Sheet | T1-T5 DR7-DR9 | 0.115-0.50 | 600-1050 | 600-1200 | Max.2 | --- | ||||||||||||
HARDNESS/TEMPER
| Temper | Chinese Standard GB/T2520 | Japanese Standard JIS G3303 | American Standard ASTM A623M | European Standard DIN EN 10203 | International Standard ISO11949 | |||||||||||||
| T-1 | TH50+SE | T-1 | T-1(T49) | TS230 | TH50+SE | |||||||||||||
| T-2 | TH52+SE | T-2 | T-2(T53) | TS245 | TH52+SE | |||||||||||||
| T-2.5 | TH55+SE | T-2.5 | T-2.5(T55) | TS260 | TH55+SE | |||||||||||||
| T-3 | TH57+SE | T-3 | T-3(T57) | TS275 | TH57+SE | |||||||||||||
| T-4 | TH61+SE | T-4 | T-4(T61) | TH415 | TH61+SE | |||||||||||||
| T-5 | TH65+SE | T-5 | T-5(T65) | TH435 | TH65+SE | |||||||||||||
| DR7 | H71+SE | DR7 | DR7(T71) | TH520 | H71+SE | |||||||||||||
| DR8 | H73+SE | DR8 | DR8(T73) | TH550 | H73+SE | |||||||||||||
| DR9 | H76+SE | DR9 | DR9(T76) | TH620 | H76+SE | |||||||||||||
TIN COATING
| Type of Coating | Designation of coating weight | Nominal coating weight | Minimun ave. coating weight | |||||||||||||||
| Jis | Astm | g/m² | 1b/BB | g/m² | 1b/BB | |||||||||||||
| Equally Coating | 1.1/1.1 | #10 | 1.1/1.1 | 0.10 | 0.9/0.9 | 0.08 | ||||||||||||
| 2.8/2.8 | #25 | 2.8/2.8 | 0.25 | 2.45/2.45 | 0.22 | |||||||||||||
| 5.6/5.6 | #50 | 5.6/5.6 | 0.50 | 5.05/5.05 | 0.47 | |||||||||||||
| Differentially Coating | 1.1/2.8 | #10/25 | 1.1/2.8 | 0.10/0.25 | 0.9/2.45 | 0.08/0.11 | ||||||||||||
| 2.8/5.6 | #25/50 | 2.8/5.6 | 0.125/0.25 | 2.25/5.05 | 0.11/0.23 | |||||||||||||
SURFACE FINISH
| Marks | Surface state | Surface Roughness range | ||||||||||||||||
| B | Bright finish | Surface Roughness:0.2μm-0.35μm | ||||||||||||||||
| R | Stone finish | Surface Roughness:0.3μm-0.45μm | ||||||||||||||||
| S | Sand finish | Surface Roughness:1.8μm-2.0μm | ||||||||||||||||
